h-kon master.
The h-kon master is the universal testing solution for battery cells, modules and packs.
Thanks to the system-integrated high-end measurement technology and industry-proven PC-based control technology with integrated safety control, the h-kon master is ideal for individual measurements, small series and fully automatic test systems.
The h-kon master has HV and LV interfaces in the control cabinet housing. The test object is contacted via a cable set that enables both manual and automatic contacting.
With the h-kon scan test software, the tester forms a complete test system and fulfils all test requirements.
h-kon scan includes all software modules for testing cells, modules and packs and can be expanded for special customer requirements.
Function overview:
Cell
- Scan entry
- Capture Data Matrix Code, create label
- Incoming goods inspection
- Insulation test
- Dielectric Strength test
- Dimensions measurement
- Power pulse, calculate DC IR
- OCV measurement
- Temperature measurement
Module
- RFID, Data Matrix code capture
- Power pulse, calculation DC IR
- OCV measurement
- SOC alignment
- CAN + SPI communication
- E-Prom flashing
- HV test
- Insulation test, dielectric strength test
- Conditioning
- Camera Process monitoring
- Data transfer to MES
Packs
- RFID, Data Matrix code capture
- Power pulse, DC IR calculation
- OCV measurement
- SOC alignment
- CAN + SPI communication
- E-Prom flashing
- HV test
- Insulation test, dielectric strength test
- Conditioning
- Camera Process monitoring
- Check dimensions
- Recording weight
- Data transfer to MES

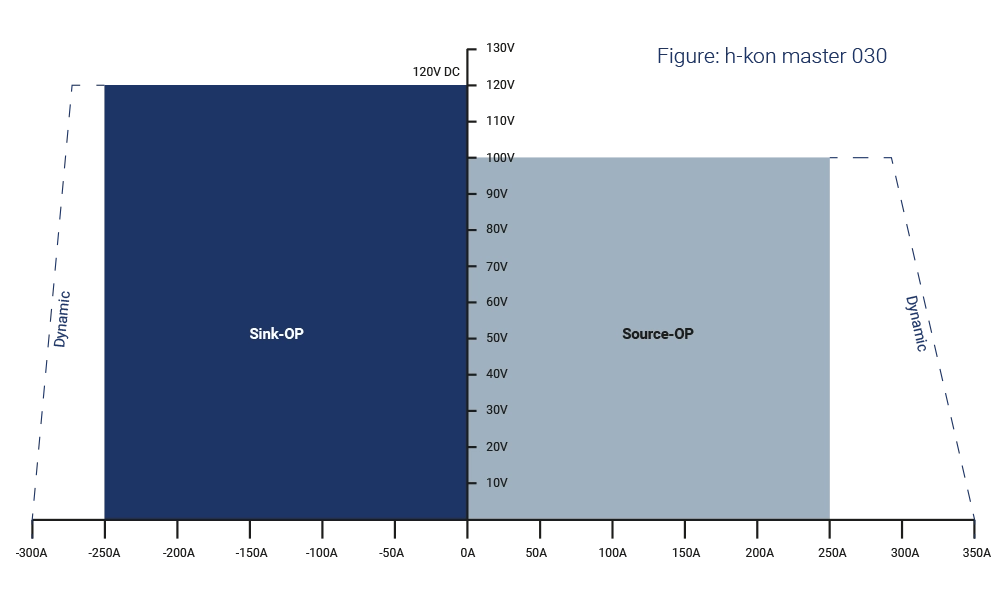

Technical specifications:
h-kon master 030
Power:
25 kW +/- 10% for 200 seconds
Source voltage:
100 V
Source current:
250 A, max. 350 A (200 sec.)
Sink voltage:
120 V
Sink current:
-250 A, max. -300 A (200 sec.)
h-kon master 125
Power:
125 kW +/- 30% for 60 seconds
Source voltage:
0... 1.000 V
Source current:
278 A, max. 430 A (25 sec.)
Sink voltage:
20... 1.000 V
Sink current:
-278 A, max. -430 A (25 sec.)
h-kon master 250
Power:
250 kW +/- 30% for 60 seconds
Source voltage:
0... 1.000 V
Source current:
375 A, max. 450 A (25 sec.)
Sink voltage:
20... 1.000 V
Sink Current:
-375 A, max. -450 A (25 sec.)
h-kon master 500
Power:
500 kW +/- 30% for 60 seconds
Source voltage:
0... 1.000 V
Source current:
1.000 A, max. 1.200 A (25 sec.)
Sink voltage:
20... 1.000 V
Sink current:
-1.000 A, max. -1.200 A (25 sec.)
